- Country
- United States of America (USA)
- Manufacturer / Brand
- Stromberg-Carlson Co. ; Rochester (NY)
- Year
- 1938–1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 62126
-
- Brand: Te-Lek-Tor-Et

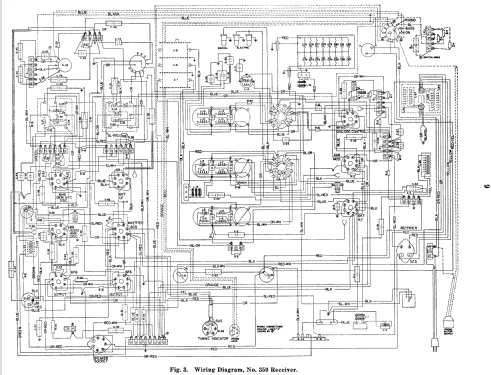

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 350-V - Stromberg-Carlson Co. ;
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 30.5 x 42 x 17.5 inch / 775 x 1067 x 445 mm
- Notes
-
The Stromberg-Carlson model 350-V is called "Labyrinth Radio" with "authentic English 18th Century Design". This model is a so called "Corner Cabinet". In the same folder for 1939/40 saison this older model is featured with 340-Y and 330-W, all are corner cabinets. Mahogany cabinet but also available in Walnut. BC (530-1700 kHz) band with eight station buttons, TROP (1700-5600 kHz) and SW (5.6-18.0 MHz) bands. AFC circuit, tuning eye, push-pull audio amplifier. For 50 to 60 Hz AC.
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 10 = 1939 and before
- Mentioned in
- Collector's Guide to Antique Radios 4. Edition (Rider's 10-16, 10-22, 10-31 to 10-33)
- Literature/Schematics (1)
- Pre-War Consoles
