• Country
• United States of America (USA)

• Manufacturer / Brand
• Stromberg-Carlson Co. ; Rochester (NY)

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 62166

• • Brand: Te-Lek-Tor-Et

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6A8G 6K7 6H6 6SQ7 6AF6G 6F6G 80

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 420-H Ch= 420 - Stromberg-Carlson Co. ;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 21.5 x 12.25 x 10 inch / 546 x 311 x 254 mm

• Notes

• Six station buttons for BC band. For 50 to 60 Hz AC.

• Net weight (2.2 lb = 1 kg)
• 24.4 lb (24 lb 6.4 oz) / 11.078 kg

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 11 = ca. 1940 and before

• Mentioned in
• Table Top Radios Vol. 1 Stein 98 (Rider's 11-13, 11-14, 11-16, 11-17)

• Literature/Schematics (1)

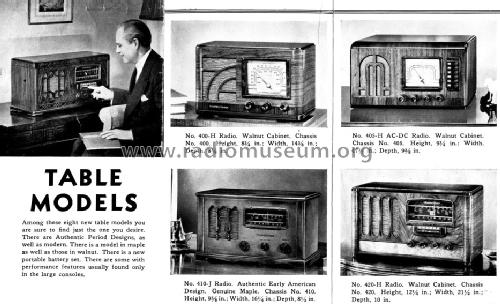

• Radio Retailing (Radio & Television R.) (ad June 1939 page 2)
