• Year
  • 1933
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 62217
    • Brand: Te-Lek-Tor-Et

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 11
  • Main principle
  • Superhet with RF-stage; ZF/IF 175 kHz; 3 AF stage(s)
  • Tuned circuits
  • 9 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Details

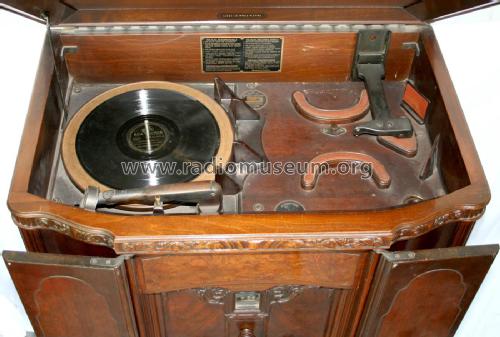

  • Record Player (perh.Changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 105-125 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 51 - Stromberg-Carlson Co. ;
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes
  • 6-legged lowboy, double doors. Bandfilter input circuits. Push-pull audio amplifier. Squelch circuit, tuning meter.
  • External source of data
  • Ernst Erb
