520-PG ; Stromberg-Carlson Co (ID = 973729) Radio
Stromberg-Carlson Co: 520-PG [Radio] ID = 973729 699x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model 520-PG, Stromberg-Carlson Co. ; Rochester (NY):
After Restoration - Doors Closed

Country:  United States of America (USA)
Manufacturer / Brand:  Stromberg-Carlson Co. ; Rochester (NY)
Brand

Te-Lek-Tor-Et
Year: 1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6SK7 6SA7 6SK7 6SQ7 6U5 6V6GT 5Y3G
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 520-PG - Stromberg-Carlson Co. ;
Material Wooden case
Shape Console with any shape - in general
Notes BC (540-1600 kHz) and SW (5.7-18.0 MHz) bands. Tuning eye. For 60 Hz AC only.

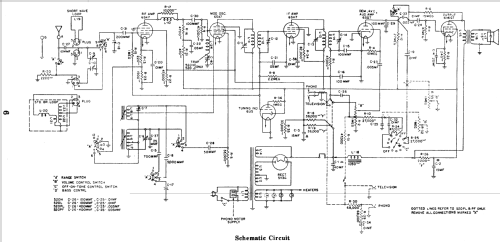

Circuit diagram reference Rider's Perpetual, Volume 12 = ca. 1941 and before
Mentioned in Rider's 12-10, 12-11, 12-12

Model page created by Götz Linss. See "Data change" for further contributors.
