- Country
- Australia
- Manufacturer / Brand
- Stromberg-Carlson (Australasia) Pty. Ltd. Sydney
- Year
- 1933/1934
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 154374
Stromberg Carlson model 534
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 1 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
- Power out
- 3 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

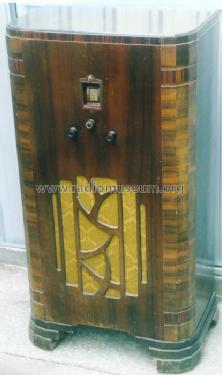

- Model: 534 - Stromberg-Carlson Australasia
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 540 x 1000 x 315 mm / 21.3 x 39.4 x 12.4 inch
- Price in first year of sale
- 27.88 Aus£
- Mentioned in
- Wireless Weekly (Australia) (15-12-33 P105.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
