• Year
  • 1940/1941
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 170632
    • Brand: Te-Lek-Tor-Et

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 15
  • Main principle
  • Superhet with RF-stage; ZF/IF 455/4300 kHz; 3 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)     11 FM circuit(s)
  • Wave bands
  • Broadcast, 2 Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 105-125 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

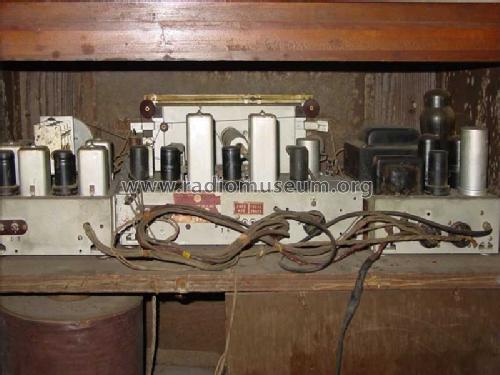

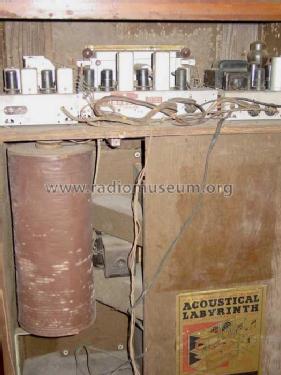

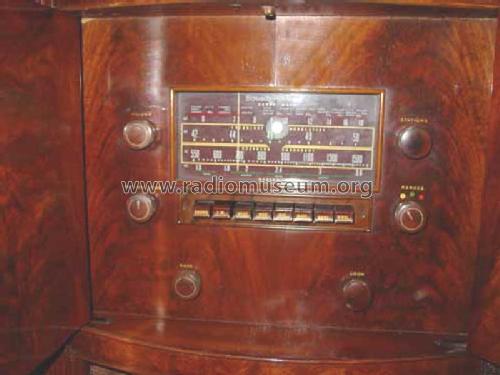

  • Model: 535-M - Stromberg-Carlson Co. ;
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 29.875 x 43.375 x 15.25 inch / 759 x 1102 x 387 mm
  • Notes
  • BC (540-1600 kHz), TROP (1600-3600 kHz), SW (5.7-18.8 MHz) and FM (42.0-50.0 MHz) bands. Six station buttons, tuning eye, push-pull audio amplifier. For 60 Hz AC.

  • Circuit diagram reference

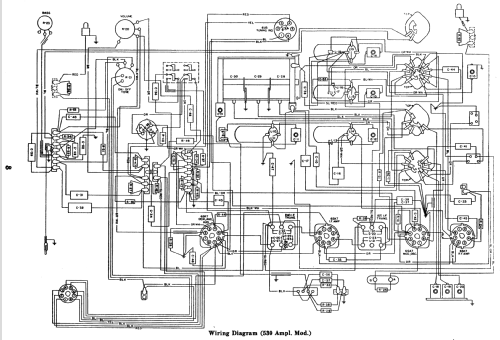

  • Rider's Perpetual, Volume 12 = ca. 1941 and before
  • Mentioned in
  • Rider's 12-1, 12-13, 12-15 to 12-20
  • Literature/Schematics (3)
  • Stromberg-Carlson Cir. #1043, Season 1941
