- Country
- Australia
- Manufacturer / Brand
- Stromberg-Carlson (Australasia) Pty. Ltd. Sydney
- Year
- 1949
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 189819
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / 215; 240 / 90 & 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Material
- Metal case
- from Radiomuseum.org
- Model: 6P29 - Stromberg-Carlson Australasia
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 330 x 155 x 140 mm / 13 x 6.1 x 5.5 inch
- Notes
-

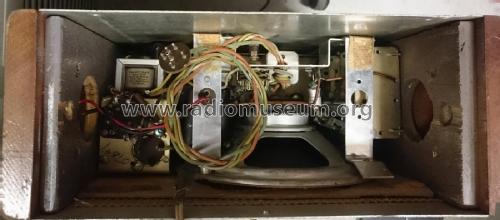

Aluminium case with wooden sides (one of which contains the built in antenna), and wooden base. Single 6 pin battery plug for 90V & 9V supply.
- Circuit diagram reference
- Australian Official Radio Service Manual Vol. VIII
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
