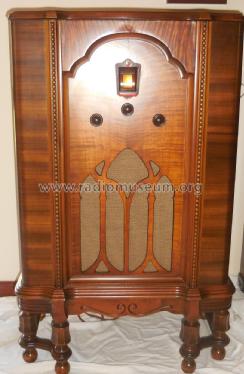

704; Stromberg-Carlson (ID = 1715138) Radio
Stromberg-Carlson: 704 [Radio] ID = 1715138 900x1378
Select picture or schematic to display from thumbnails on the right and click for download.
For model 704, Stromberg-Carlson (Australasia) Pty. Ltd. Sydney

Country:  Australia
Manufacturer / Brand:  Stromberg-Carlson (Australasia) Pty. Ltd. Sydney
Year: 1933/1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7:
Main principle Superheterodyne (common); ZF/IF 465 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: 704 - Stromberg-Carlson Australasia
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes Class B output. Price below includes batteries.
Price in first year of sale 39.98 Aus£
Mentioned in Wireless Weekly (Australia) (15-12-33 P47.)
Literature/Schematics (1) Mingay's "Radio Diagram & I.F. Index

Model page created by Stuart Irwin. See "Data change" for further contributors.
