• Year
  • 1941/1942
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 170761
    • Brand: Te-Lek-Tor-Et

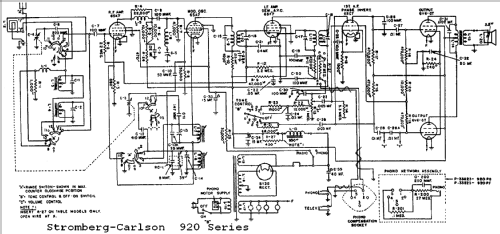

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 105-125 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Power out
  • 9 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 920-L - Stromberg-Carlson Co. ;
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 38.875 x 31.25 x 12.625 inch / 987 x 794 x 321 mm
  • Notes
  • BC (540-1600 kHz) band with six station buttons and SW (8.8-12.0 MHz) band. Push-pull audio amplifier. For 50 to 60 Hz AC.

  • Circuit diagram reference
  • Rider's Perpetual, Volume 13 = 1942 and before
  • Literature/Schematics (3)
  • Stromberg-Carlson Cir. #1043, Season 1941
