AR-430

AR-430; Stromberg-Carlson Co (ID = 2482471) Ampl/Mixer

AR-430; Stromberg-Carlson Co (ID = 2482472) Ampl/Mixer
AR-430; Stromberg-Carlson Co (ID = 691468) Ampl/Mixer AR-430; Stromberg-Carlson Co (ID = 691469) Ampl/Mixer
AR-430; Stromberg-Carlson Co (ID = 691470) Ampl/Mixer AR-430; Stromberg-Carlson Co (ID = 2482943) Ampl/Mixer
Use red slider bar for more.
AR-430; Stromberg-Carlson Co (ID = 691468) Ampl/Mixer

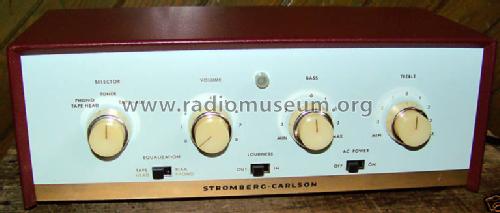

Stromberg-Carlson Co: AR-430 [Ampl/Mixer] ID = 691468 768x328
Select picture or schematic to display from thumbnails on the right and click for download.
For model AR-430, Stromberg-Carlson Co. ; Rochester (NY):
aus ebay, Verkäufer kevco12

Country:  United States of America (USA)
Manufacturer / Brand:  Stromberg-Carlson Co. ; Rochester (NY)
Brand

Te-Lek-Tor-Et
Year: 1959 ? Category: Audio Amplifier or -mixer
Valves / Tubes 6: 12AX7 6AV6 6U8 EL84 EL84 EZ81
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker - This model requires external speaker(s).
Power out 12 W (unknown quality)
from Radiomuseum.org Model: AR-430 - Stromberg-Carlson Co. ;
Material Metal case
Shape Book-shelf unit.
Notes Integrated Amp, mono.
Literature/Schematics (1) -- Schematic

Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
