For model AU-64, Stromberg-Carlson Co. ; Rochester (NY):

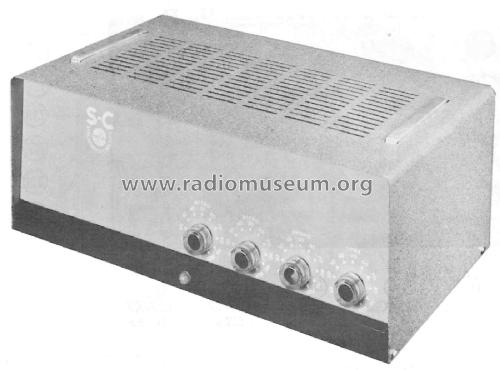

Picture from service manual.

Country:  United States of America (USA)
Manufacturer / Brand:  Stromberg-Carlson Co. ; Rochester (NY)
Brand

Te-Lek-Tor-Et
Year: 1958 ? Category: Audio Amplifier or -mixer
Valves / Tubes 6: 12AX7 or ECC83 12AT7 or ECC82 6AV6 6L6GB 6L6GB 5U4GB
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 60 Hz, 117V = 105 -125 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: AU-64 - Stromberg-Carlson Co. ;
Material Metal case
Shape Tablemodel, with any shape - general.
Notes

Stromberg-Carlson model AU-64 is an AC operated 3 channel audio amplifier.

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 388 Folder 12 dated 2-58)

Model page created by Dirk Taekels. See "Data change" for further contributors.
