D39

D39; Stromberg-Carlson (ID = 1394714) Radio D39; Stromberg-Carlson (ID = 1394715) Radio
D39; Stromberg-Carlson (ID = 2486141) Radio D39; Stromberg-Carlson (ID = 2486142) Radio
D39; Stromberg-Carlson (ID = 2486949) Radio D39; Stromberg-Carlson (ID = 2486950) Radio
Use red slider bar for more.

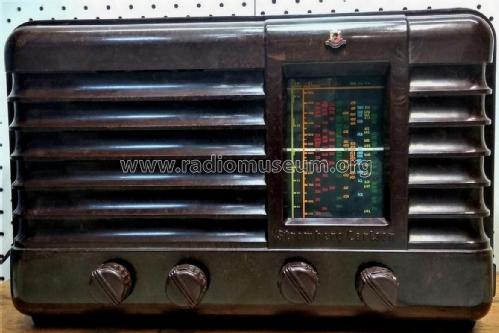

D39; Stromberg-Carlson (ID = 1394714) Radio
Stromberg-Carlson: D39 [Radio] ID = 1394714 933x695
Select picture or schematic to display from thumbnails on the right and click for download.
For model D39, Stromberg-Carlson (Australasia) Pty. Ltd. Sydney

Country:  Australia
Manufacturer / Brand:  Stromberg-Carlson (Australasia) Pty. Ltd. Sydney
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6J8G 6U7G 6B6G 6F6G 5Y3G
Main principle Superheterodyne (common); ZF/IF 458 kHz; 2 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: D39 - Stromberg-Carlson Australasia
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 375 x 245 x 170 mm / 14.8 x 9.6 x 6.7 inch
Net weight (2.2 lb = 1 kg) 6.8 kg / 14 lb 15.6 oz (14.978 lb)

Model page created by Harold Norrie. See "Data change" for further contributors.
