• Year
  • 1931
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 209715

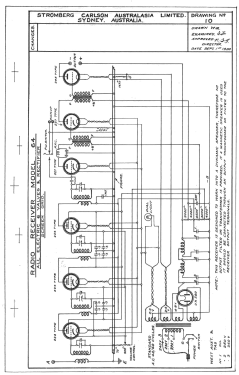

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • TRF without regeneration; 2 AF stage(s); Screengrid 1926-1935
  • Tuned circuits
  • 4 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 240 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Juvenal 64 - Stromberg-Carlson Australasia
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes
  • 7-valve, AC powered, TRF receiver

  • Price in first year of sale
  • 68.00 Aus£
  • Mentioned in
  • Wireless Weekly 20/3/31 P24.
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service Bulletin No. 64.)
  • Author
  • Model page created by Stuart Irwin. See "Data change" for further contributors.
