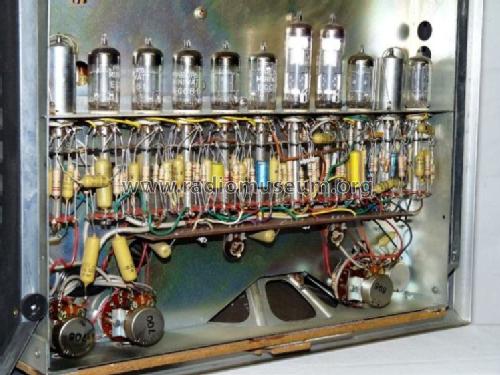

Revox G36 Chassis

Revox G36; Studer GmbH, Willi (ID = 33617) R-Player

Revox G36; Studer GmbH, Willi (ID = 2059438) R-Player

Revox G36; Studer GmbH, Willi (ID = 2059439) R-Player

Revox G36; Studer GmbH, Willi (ID = 2570757) R-Player

Revox G36; Studer GmbH, Willi (ID = 2570758) R-Player
Revox G36; Studer GmbH, Willi (ID = 672782) R-Player Revox G36; Studer GmbH, Willi (ID = 32486) R-Player
Revox G36; Studer GmbH, Willi (ID = 160946) R-Player Revox G36; Studer GmbH, Willi (ID = 274040) R-Player

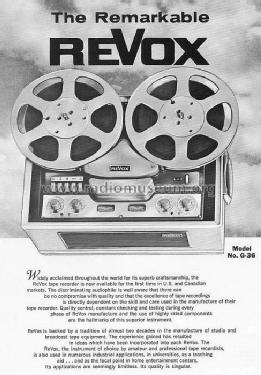

Revox G36; Studer GmbH, Willi (ID = 590643) R-Player Revox G36; Studer GmbH, Willi (ID = 590644) R-Player
Revox G36; Studer GmbH, Willi (ID = 590646) R-Player Revox G36; Studer GmbH, Willi (ID = 590647) R-Player
Revox G36; Studer GmbH, Willi (ID = 672772) R-Player Revox G36; Studer GmbH, Willi (ID = 672774) R-Player
Use red slider bar for more.
Revox G36; Studer GmbH, Willi (ID = 672782) R-Player

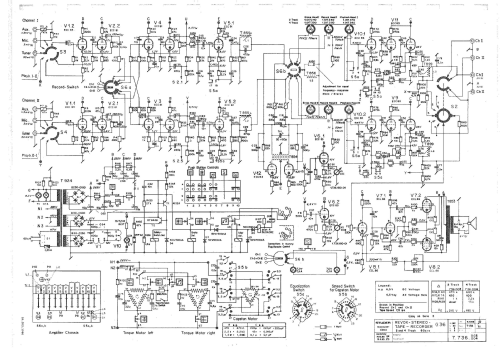

Studer GmbH, Willi: Revox G36 [R-Player] ID = 672782 835x639
Select picture or schematic to display from thumbnails on the right and click for download.
For model Revox G36 Chassis, Studer GmbH, Willi (ReVox); Löffingen

Country:  Germany
Manufacturer / Brand:  Studer GmbH, Willi (ReVox); Löffingen
Brand

ReVox (brand)
Year: 1963–1967 Category: Sound/Video Recorder and/or Player
Valves / Tubes 12: ECC81 ECC81 ECC81 ECC81 ECC82 ECC83 ECC83 ECC83 ECC83 ECC83 ECL86 ECL86
Semiconductors (the count is only for transistors) 2:
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Revox G36 [Chassis] - Studer GmbH, Willi ReVox;
Shape Chassis only or for «building in»
Dimensions (WHD) 480 x 297 x 340 mm / 18.9 x 11.7 x 13.4 inch
Notes Stereo-Tonbandchassis, 3 Motore, 3 Köpfe, 9,5 und 19 cm/s, 2 oder 4-Spur-Ausführung, max. 26,5 cm-Spulen, 5 Dioden, Preis von 1967 (Preis 1965: 1632,-DM)
Net weight (2.2 lb = 1 kg) 23 kg / 50 lb 10.6 oz (50.661 lb)
Price in first year of sale 1'295.00 DM
External source of data erb
Source of data Handbuch VDRG 1967/1968 / Radiokatalog Band 2, Ernst Erb
Mentioned in Funkschau (Heft 23/1963, S. 655)
Documents regarding this model
  Mode d'emploi Revox G36 2787 KB
