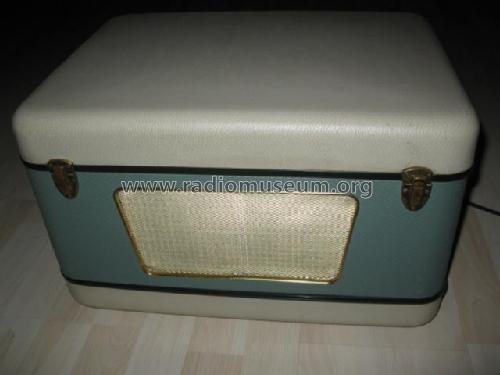

Spezial D-36; Studer GmbH, Willi (ID = 1003283) R-Player Spezial D-36; Studer GmbH, Willi (ID = 1003282) R-Player
Spezial D-36; Studer GmbH, Willi (ID = 1003284) R-Player Spezial D-36; Studer GmbH, Willi (ID = 1003289) R-Player
Spezial D-36; Studer GmbH, Willi (ID = 1003290) R-Player Spezial D-36; Studer GmbH, Willi (ID = 1003292) R-Player
Spezial D-36; Studer GmbH, Willi (ID = 1003293) R-Player Spezial D-36; Studer GmbH, Willi (ID = 1003294) R-Player
Use red slider bar for more.
Spezial D-36; Studer GmbH, Willi (ID = 1003283) R-Player
Studer GmbH, Willi: Spezial D-36 [R-Player] ID = 1003283 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Spezial D-36, Studer GmbH, Willi (ReVox); Löffingen

Country:  Germany
Manufacturer / Brand:  Studer GmbH, Willi (ReVox); Löffingen
Brand

ReVox (brand)
Year: 1960 ? Category: Sound/Video Recorder and/or Player
Valves / Tubes 12: ECC83 ECC83 ECC83 ECC83 EM71 EM84 ECC81 ECC81 ECL82 ECL82 ECL80 ECL80
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 14 cm = 5.5 inch
Power out 6 W (unknown quality)
from Radiomuseum.org Model: Spezial D-36 - Studer GmbH, Willi ReVox;
Material Various materials
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 460 x 280 x 340 mm / 18.1 x 11 x 13.4 inch
Notes Studer D36 Spezial hat 3-Motorenantrieb, 2 magische Augen (EM71 für Aussteuerung Aufnahme, EM84 Aussteuerung Wiedergabe), Vollspur, 2 Geschwindigkeiten 7,5 und 15 ips (19 und 38 cm/s). Sonderausführung für Rundfunk- und Tonstudios.
Net weight (2.2 lb = 1 kg) 19.5 kg / 42 lb 15.2 oz (42.952 lb)

Model page created by Edgar Müller. See "Data change" for further contributors.
