• Year
  • 1960 ??
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 109645
    • alternative name: RKF

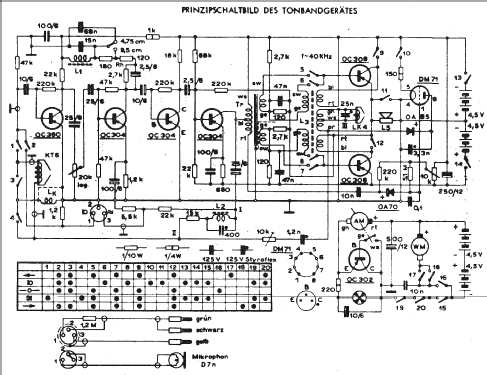

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Valves / Tubes
  • DM71
  • Number of Transistors
  • 7
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Tape Recorder
  • Power type and voltage
  • Dry Batteries / 4× 4,5 Volt
  • from Radiomuseum.org
  • Model: Magnettino - Stuzzi Ges. mbH; Wien
  • Shape
  • Tablemodel, low profile (big size).
  • Source of data
  • -- Collector info (Sammler)
  • Author
  • Model page created by Willibald Freismuth. See "Data change" for further contributors.

 Collections | Museums | Literature

Collections

The model Magnettino is part of the collections of the following members.
