Memocord K60

Memocord K60; Stuzzi Ges. mbH; (ID = 212605) R-Player

Memocord K60; Stuzzi Ges. mbH; (ID = 212606) R-Player

Memocord K60; Stuzzi Ges. mbH; (ID = 212607) R-Player

Memocord K60; Stuzzi Ges. mbH; (ID = 212608) R-Player

Memocord K60; Stuzzi Ges. mbH; (ID = 212609) R-Player

Memocord K60; Stuzzi Ges. mbH; (ID = 212610) R-Player

Memocord K60; Stuzzi Ges. mbH; (ID = 212611) R-Player
Memocord K60; Stuzzi Ges. mbH; (ID = 627261) R-Player Memocord K60; Stuzzi Ges. mbH; (ID = 627262) R-Player
Memocord K60; Stuzzi Ges. mbH; (ID = 679889) R-Player Memocord K60; Stuzzi Ges. mbH; (ID = 679890) R-Player
Memocord K60; Stuzzi Ges. mbH; (ID = 679891) R-Player Memocord K60; Stuzzi Ges. mbH; (ID = 679892) R-Player
Memocord K60; Stuzzi Ges. mbH; (ID = 679893) R-Player Memocord K60; Stuzzi Ges. mbH; (ID = 679895) R-Player
Memocord K60; Stuzzi Ges. mbH; (ID = 752912) R-Player Memocord K60; Stuzzi Ges. mbH; (ID = 1259230) R-Player
Use red slider bar for more.

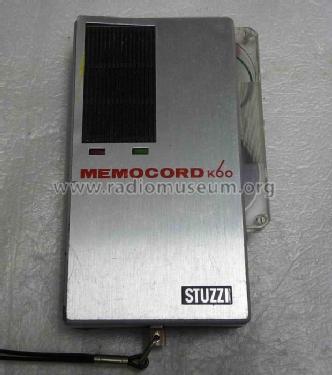

Memocord K60; Stuzzi Ges. mbH; (ID = 627261) R-Player
Stuzzi Ges. mbH;: Memocord K60 [R-Player] ID = 627261 620x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Memocord K60, Stuzzi Ges. mbH; Wien

Country:  Austria
Manufacturer / Brand:  Stuzzi Ges. mbH; Wien
alternative name

RKF
Year: 1967 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Dry Batteries / 3 × 1,5 Volt
Loudspeaker -Loudspeaker incorporated, but system not known.
Power out
from Radiomuseum.org Model: Memocord K60 - Stuzzi Ges. mbH; Wien
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 76 x 145 x 28 mm / 3 x 5.7 x 1.1 inch
Notes Transistoren: 2× AC127 (oder AC141, AC186, BC108), 2× AC128 (oder AC142). 1 IC TAA151 (oder TAA293/A2). 6 Schaltungsvarianten darunter auch Sprachsteuerung.
Net weight (2.2 lb = 1 kg) 0.330 kg / 0 lb 11.6 oz (0.727 lb)
Price in first year of sale 2'150.00 ATS
Mentioned in (A) Hobby Elektronik Jänner 1994
Literature/Schematics (1) -- Original prospect or advert (Österreichische Radioschau, Heft 1, 1967)

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
