For model Radiocord 379W, Stuzzi Ges. mbH; Wien:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Austria
Manufacturer / Brand:  Stuzzi Ges. mbH; Wien
alternative name

RKF
Year: 1962 Category: Sound/Video Recorder and/or Player
Valves / Tubes 4: ECC82 EC92 ECL86 EM84
Main principle Audio-Amplification
Wave bands Broadcast only (MW).
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Radiocord 379W - Stuzzi Ges. mbH; Wien
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 340 x 155 x 260 mm / 13.4 x 6.1 x 10.2 inch
Notes

Tonbandgerät mit eingebautem, einfachem MW-Empfänger (Einkreiser mit fest eingestellter Rückkopplung).
Netztrafo umschaltbar 50/60Hz.

Siehe auch Stuzzi Radiocord 203

Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
External source of data Blick 41/1962 "Der Radiopraktiker"
Source of data Radiokatalog Band 2, Ernst Erb

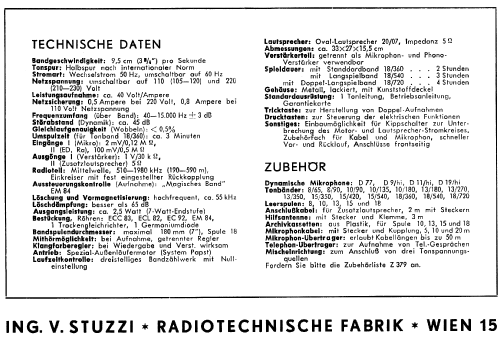

Literature/Schematics (1) -- Original prospect or advert

Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
