SR7

SR7; Stuzzi Ges. mbH; (ID = 72066) Radio

SR7; Stuzzi Ges. mbH; (ID = 751484) Radio
SR7; Stuzzi Ges. mbH; (ID = 167066) Radio SR7; Stuzzi Ges. mbH; (ID = 381303) Radio
SR7; Stuzzi Ges. mbH; (ID = 381304) Radio SR7; Stuzzi Ges. mbH; (ID = 695028) Radio

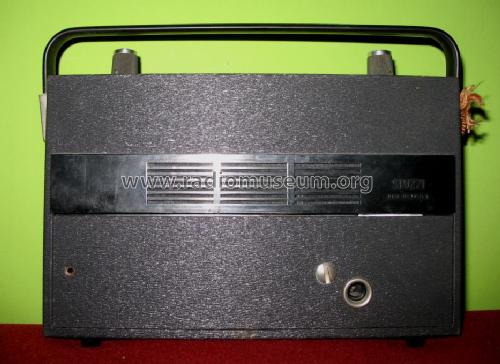

SR7; Stuzzi Ges. mbH; (ID = 695029) Radio SR7; Stuzzi Ges. mbH; (ID = 695032) Radio

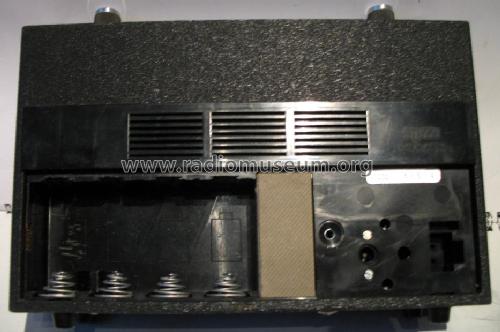

SR7; Stuzzi Ges. mbH; (ID = 695033) Radio SR7; Stuzzi Ges. mbH; (ID = 750784) Radio
Use red slider bar for more.
SR7; Stuzzi Ges. mbH; (ID = 167066) Radio
Stuzzi Ges. mbH;: SR7 [Radio] ID = 167066 464x416
Select picture or schematic to display from thumbnails on the right and click for download.
For model SR7, Stuzzi Ges. mbH; Wien

Country:  Austria
Manufacturer / Brand:  Stuzzi Ges. mbH; Wien
alternative name

RKF
Year: 1966 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7:
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: SR7 - Stuzzi Ges. mbH; Wien
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 210 x 130 x 53 mm / 8.3 x 5.1 x 2.1 inch
Notes Zubehör Netzgerät SN150 (198 ATS).
Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)
Price in first year of sale 745.00 ATS
Collectors' prices
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in Museums Bote, Österr. (Heft 124/2004, S.9 ff, Gerätebeschreibung)

Model page created by Gerhard Heigl. See "Data change" for further contributors.



All listed radios etc. from Stuzzi Ges. mbH; Wien
Here you find 98 models, 85 with images and 53 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
