K93936

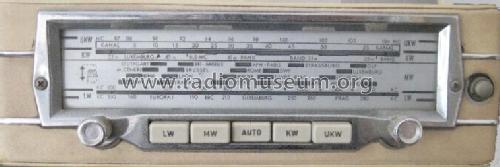

K93936; Südfunk-Apparatebau, (ID = 806814) Radio K93936; Südfunk-Apparatebau, (ID = 806815) Radio
K93936; Südfunk-Apparatebau, (ID = 806817) Radio
Use red slider bar for more.
K93936; Südfunk-Apparatebau, (ID = 806814) Radio
Südfunk-Apparatebau,: K93936 [Radio] ID = 806814 761x417
Select picture or schematic to display from thumbnails on the right and click for download.
For model K93936, Südfunk-Apparatebau, Dr. Ing. Robert Ott; Stuttgart :
Vorderansicht K 93936

Country:  Germany
Manufacturer / Brand:  Südfunk-Apparatebau, Dr. Ing. Robert Ott; Stuttgart
Year: 1964/1965 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 2 x 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: K93936 - Südfunk-Apparatebau, Dr. Ing.
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 280 x 190 x 80 mm / 11 x 7.5 x 3.1 inch
Notes [14. Taxliste Franzis-Verlag, 1966]
Ausführung: Holzgehäuse mit hellen Kunstleder (gelb?) überzogen.
Net weight (2.2 lb = 1 kg) 2.2 kg / 4 lb 13.5 oz (4.846 lb)
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
