Portable K96932
Südfunk-Apparatebau, Dr. Ing. Robert Ott; Stuttgart
- Country
- Germany
- Manufacturer / Brand
- Südfunk-Apparatebau, Dr. Ing. Robert Ott; Stuttgart
- Year
- 1966/1967
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 17187
- Number of Transistors
- 9
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Dry Batteries / 2 × 4,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Power out
- 1 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org

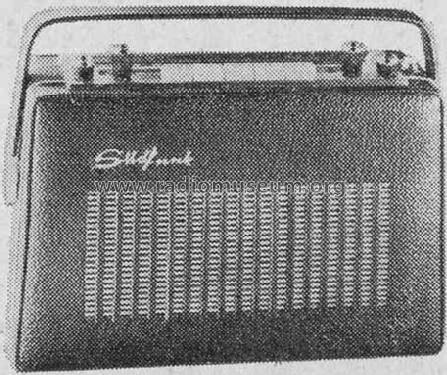

- Model: Portable K96932 - Südfunk-Apparatebau, Dr. Ing.
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 275 x 180 x 88 mm / 10.8 x 7.1 x 3.5 inch
- Notes
- Transistoren: AF106, AF135, AF136, AF137, AF138, 2× 2SB54, 2× AC117.
Betrieb im Auto über Autohalterung A4 (36,- DM) aus 6-V- oder 12-V-Autobatterie, Ausgangsleistung dann 1,7 W; Netzbetrieb mit zusätzlichem Netzteil möglich.
Weiße Tasten!
- Net weight (2.2 lb = 1 kg)
- 2.5 kg / 5 lb 8.1 oz (5.507 lb)
- Price in first year of sale
- 279.00 DM
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Handbuch VDRG 1966/1967 / Radiokatalog Band 2, Ernst Erb
