PLL Synthesized Stereo World Receiver WR-33

SuperTech Deutschland GmbH; Nettetal (nur ein Vertrieb in D!)

Data

Forum

Pictures

Collections

Country
Germany

Manufacturer / Brand
SuperTech Deutschland GmbH; Nettetal (nur ein Vertrieb in D!)

Year
1995 ??

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
236377

Schematics

PLL Synthesized Stereo World Receiver WR-33; SuperTech (ID = 1500057) Radio — SuperTech PLL Synthesized Stereo World Receiver WR-33 (1)

PLL Synthesized Stereo World Receiver WR-33; SuperTech (ID = 1500058) Radio — SuperTech PLL Synthesized Stereo World Receiver WR-33 (1)

PLL Synthesized Stereo World Receiver WR-33; SuperTech (ID = 1500059) Radio — SuperTech PLL Synthesized Stereo World Receiver WR-33 (1)

PLL Synthesized Stereo World Receiver WR-33; SuperTech (ID = 1500060) Radio — SuperTech PLL Synthesized Stereo World Receiver WR-33 (1)

PLL Synthesized Stereo World Receiver WR-33; SuperTech (ID = 1500061) Radio — SuperTech PLL Synthesized Stereo World Receiver WR-33 (1)

PLL Synthesized Stereo World Receiver WR-33; SuperTech (ID = 2582746) Radio — SuperTech PLL Synthesized Stereo World Receiver WR-33 (1)

PLL Synthesized Stereo World Receiver WR-33; SuperTech (ID = 2582747) Radio — SuperTech PLL Synthesized Stereo World Receiver WR-33 (1)

PLL Synthesized Stereo World Receiver WR-33; SuperTech (ID = 2583246) Radio — SuperTech PLL Synthesized Stereo World Receiver WR-33 (1)

PLL Synthesized Stereo World Receiver WR-33; SuperTech (ID = 2583247) Radio — SuperTech PLL Synthesized Stereo World Receiver WR-33 (1)

PLL Synthesized Stereo World Receiver WR-33; SuperTech (ID = 2583248) Radio — SuperTech PLL Synthesized Stereo World Receiver WR-33 (1)

PLL Synthesized Stereo World Receiver WR-33; SuperTech (ID = 2583249) Radio — SuperTech PLL Synthesized Stereo World Receiver WR-33 (1)

Technical Specifications

Number of Transistors
Semiconductors present.

Semiconductors
CXA1622 TA8132

Main principle
PLL, Phase-locked loop

Wave bands
Broadcast, Short Wave plus FM or UHF.

Details
Radio with other functions

Power type and voltage
Dry Batteries / UM3: 3 x 1,5 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.7 cm = 2.2 inch

Material
Bakelite or Plastics (type unknown)

from Radiomuseum.org
Model: PLL Synthesized Stereo World Receiver WR-33 - SuperTech Deutschland GmbH;

Shape
Very small Portable or Pocket-Set (Handheld) < 8 inch.

Dimensions (WHD)
132 x 80 x 28 mm / 5.2 x 3.1 x 1.1 inch

Notes

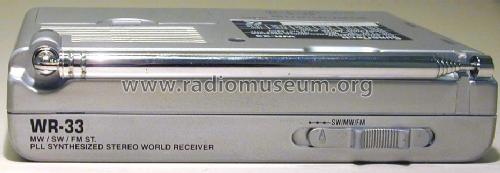

SuperTech WR-33 PLL Synthesized Stereo World Receiver, FM Stereo with LED, KW von 5.95 MHz - 15.60. Incl 19; 21; 25; 31; 41 und 49 m Band. Ext Kopfhöreranschluss, Timer / sleep; 5 Memories. Man / Auto Scan,

The radio contains several transistors and 3 IC's: one Sony CXA1622M (Stereophonic amplifier), one Toshiba TA8132AN (3V AM/FM IF MPX, for digital tuning system) and one unidentfiable.

Net weight (2.2 lb = 1 kg)
0.2 kg / 0 lb 7 oz (0.441 lb)

Author
Model page created by Eckhard Wegner. See "Data change" for further contributors.
