- Country
- Italy
- Manufacturer / Brand
- Superla - Cresa; Modena
- Year
- 1938/1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 30750
-
- alternative name: Cresa Radio; Modena
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-235 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 1749 - Superla - Cresa; Modena
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 900 x 860 x 400 mm / 35.4 x 33.9 x 15.7 inch
- Notes
-
Indicatore di sintonia (6E5). Controllo di tono.
Preselezione a pulsante di 12 emittenti.
- Source of data
- Guida Pratica Antique Radio III (2000)
- Literature/Schematics (1)
- Il Radio Libro (E.D. Ravalico) Edizioni Hoepli
- Literature/Schematics (2)
- Schemario di apparecchi radio a valvole (II edizione, D.E. Ravalico - Hoepli - 1945)
- Literature/Schematics (3)

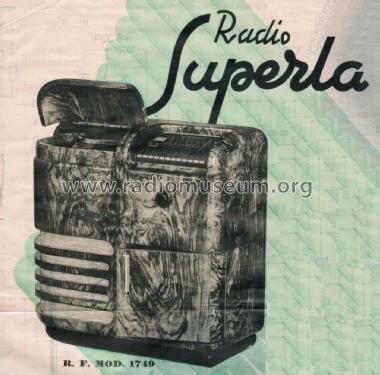

- -- Original prospect or advert (Volantino pubblicitario originalr. 1938)
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
