536

536; Superla - Cresa; (ID = 237826) Radio
Use red slider bar for more.
536; Superla - Cresa; (ID = 237826) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Italy
Manufacturer / Brand:  Superla - Cresa; Modena
alternative name

Cresa Radio; Modena
Year: 1946 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A8G 6K7G 6Q7G 6V6G 5Y3G
Main principle Superheterodyne (common); ZF/IF 468.5 kHz
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 125; 160; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: 536 - Superla - Cresa; Modena
Notes Gamme d'onda: medie, corte, cortissime.

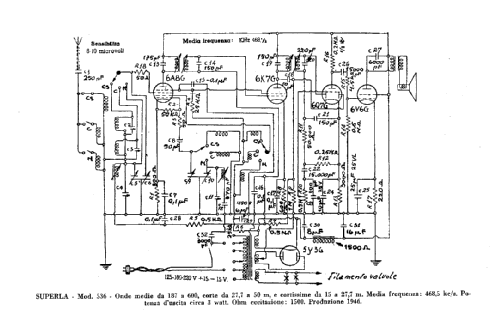

Literature/Schematics (1) Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 320)
Literature/Schematics (2) Il Radio Libro (D.E. Ravalico 1947)

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Superla - Cresa; Modena
Here you find 118 models, 63 with images and 57 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
