536B

536B; Superla - Cresa; (ID = 1331445) Radio
536B; Superla - Cresa; (ID = 2223757) Radio 536B; Superla - Cresa; (ID = 2223756) Radio
536B; Superla - Cresa; (ID = 1261593) Radio
Use red slider bar for more.
536B; Superla - Cresa; (ID = 2223757) Radio

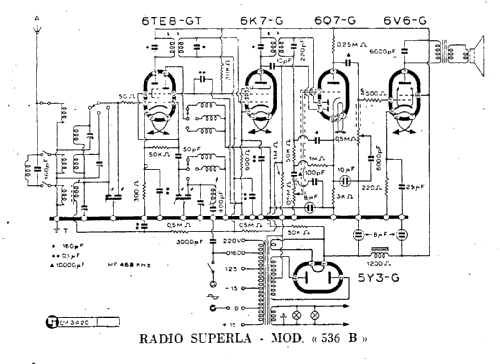

Superla - Cresa;: 536B [Radio] ID = 2223757 883x955
Select picture or schematic to display from thumbnails on the right and click for download.
For model 536B, Superla - Cresa; Modena:
from ebay ..ebay.it/itm/Radio-dEpoca-Superla-mod-536-B-anno-1940-ITALIA/292446002428

Country:  Italy
Manufacturer / Brand:  Superla - Cresa; Modena
alternative name

Cresa Radio; Modena
Year: 1946 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5:
Main principle Superheterodyne (common)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 125; 160; 220 Volt
Loudspeaker Presumably Dynamic Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 536B - Superla - Cresa; Modena
Material Wooden case
Shape Tablemodel, low profile (big size).

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Superla - Cresa; Modena
Here you find 118 models, 63 with images and 57 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
