538B

538B; Superla - Cresa; (ID = 237827) Radio
Use red slider bar for more.
538B; Superla - Cresa; (ID = 237827) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Italy
Manufacturer / Brand:  Superla - Cresa; Modena
alternative name

Cresa Radio; Modena
Year: 1949 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7 12SK7 12SQ7 50L6 35Z5
Main principle Superheterodyne (common); ZF/IF 468.5 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110-235 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: 538B - Superla - Cresa; Modena
Notes

Autotrasformatore: Telaio collegato alla rete elettrica. Non tutti i casi sono dichiarati poichè spesso chi propone il modello non lo può sapere.

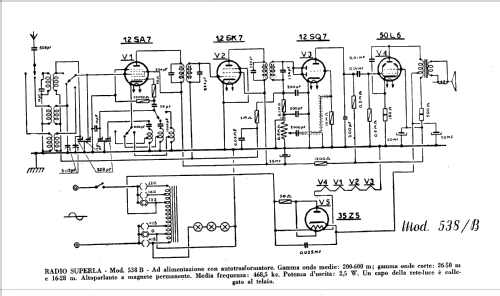

Literature/Schematics (1) Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 323)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
