547; Superla - Cresa; (ID = 53778) Radio
Use red slider bar for more.
547; Superla - Cresa; (ID = 53778) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Italy
Manufacturer / Brand:  Superla - Cresa; Modena
alternative name

Cresa Radio; Modena
Year: 1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6A7 78 or 6D6 75 6L6 6E5 80
Main principle Superheterodyne (common); ZF/IF 128.25 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 220; 275 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 547 - Superla - Cresa; Modena
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 600 x 370 x 270 mm / 23.6 x 14.6 x 10.6 inch
Notes

Controllo di tono. Ingresso Fono.
Tuning meter (6E5). Tube 78 replaceable with 6D6

Source of data Guida Pratica Antique Radio III (2000)

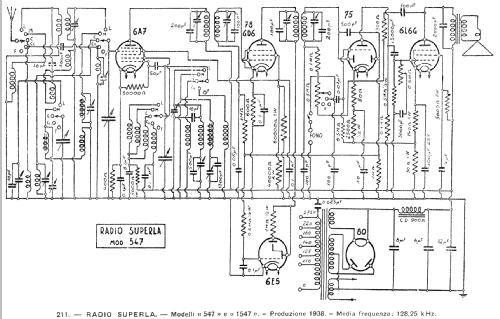

Literature/Schematics (1) Il Radio Libro (E.D. Ravalico) Edizioni Hoepli
Literature/Schematics (2) Schemario di apparecchi radio a valvole (II edizione, D.E. Ravalico - Hoepli - 1945)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
