549

549; Superla - Cresa; (ID = 53770) Radio
549; Superla - Cresa; (ID = 2623796) Radio 549; Superla - Cresa; (ID = 2623797) Radio
Use red slider bar for more.
549; Superla - Cresa; (ID = 2623796) Radio
Superla - Cresa;: 549 [Radio] ID = 2623796 1400x1121
Select picture or schematic to display from thumbnails on the right and click for download.
For model 549, Superla - Cresa; Modena:

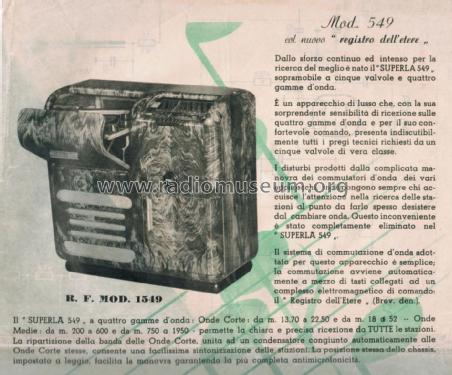

Volantino pubblicitario dell'epoca.

Country:  Italy
Manufacturer / Brand:  Superla - Cresa; Modena
alternative name

Cresa Radio; Modena
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6K8 6K7 6Q7 6L6 80 6E5
Main principle Superheterodyne (common); ZF/IF 468 kHz
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-235 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 549 - Superla - Cresa; Modena
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 490 x 470 x 310 mm / 19.3 x 18.5 x 12.2 inch
Notes

Indicatore di sintonia (6E5).
Commutazione di gamma tramite tasti che comandano un complesso elettromagnetico di comando: il "Registro dell'Etere".

Source of data Guida Pratica Antique Radio III (2000)
Mentioned in -- Original prospect or advert
Literature/Schematics (1) Il Radio Libro (E.D. Ravalico) Edizioni Hoepli

Model page created by Alessandro De Poi. See "Data change" for further contributors.
