55CM
Superla - Cresa;: 55CM [Radio] ID = 427074 434x458
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
Cresa Radio; Modena | ||||
|---|---|---|---|---|---|
| Year: 1935/1936 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 5: 6A7 78 6B7 41 80 |
| Main principle | Superheterodyne (common); ZF/IF 450 kHz |
|---|---|
| Wave bands | Broadcast and Short Wave (SW). |
| Details | |

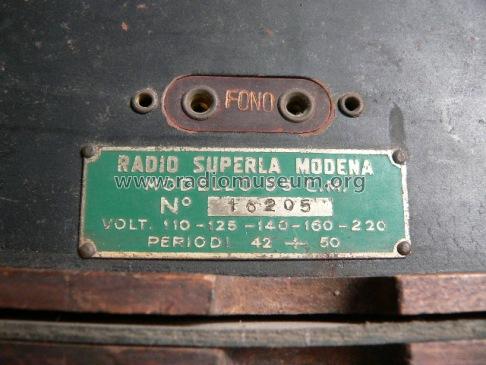

| Power type and voltage | Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt |
| Loudspeaker | Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 14 cm = 5.5 inch |
| Power out | |
| from Radiomuseum.org | Model: 55CM - Superla - Cresa; Modena |
| Material | Wooden case |
| Shape | Tablemodel, high profile (upright - NOT Cathedral nor decorative). |
| Dimensions (WHD) | 340 x 430 x 280 mm / 13.4 x 16.9 x 11 inch |
| Notes | Diverse varianti di mobile. La moderna Supereterodina, Ravalico, 1938 indica valvola 73 anziché 78, evidente errore di stampa in quanto la 73 è un diodo raddrizzatore, la 78 un pentodo RF. |
| Price in first year of sale | 1'020.00 ITL |
| Source of data | Guida Pratica Antique Radio V (2003) |
| Mentioned in | Antique Radio Magazine - Italy, Club Antique Radio Magazine (n. 104, Nov.-Dec. 2011) |
| Literature/Schematics (2) | La moderna Supereterodina, Ravalico, 1938 |
| Literature/Schematics (3) | Schemario di apparecchi radio a valvole (II edizione, D.E. Ravalico - Hoepli - 1945) |
Model page created by Alessandro De Poi. See "Data change" for further contributors.
