Luxe A

Suprema; Antwerpen(?)

Data
Forum
Pictures
Collections

  • Year
  • 1936–1938 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 303595

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superhet with RF-stage; ZF/IF 123 kHz; 2 AF stage(s); Reflex
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Details
  • Visual Tuning Indicator pre Eye
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 130; 140; 220; 240 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 27 cm = 10.6 inch
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Luxe A - Suprema; Antwerpen?
  • Shape

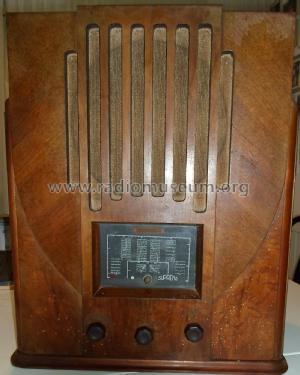

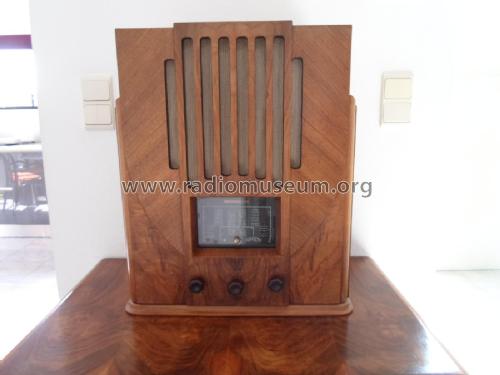

  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 450 x 540 x 290 mm / 17.7 x 21.3 x 11.4 inch
  • Notes

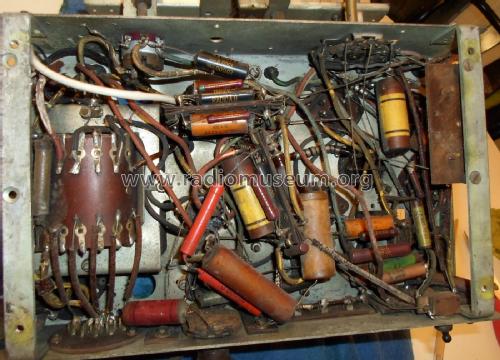

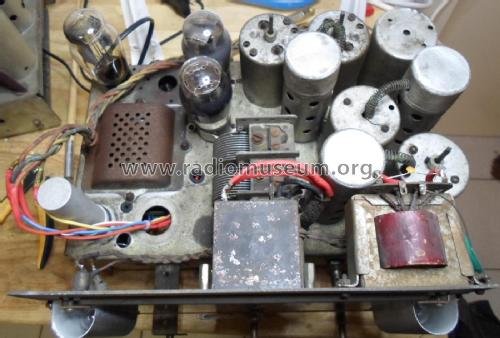

  • The Suprema Luxe A has the chassis from the SBR 636.

    Like the SBR 636, this radio has also an Ombrograph (shadow tuning indicator).

  • Author
  • Model page created by Frans Maessen. See "Data change" for further contributors.
