Two Inch Oscilloscope 530

Supreme Instruments Corp.; Greenwood (MS)

  • Year
  • 1938
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 95732

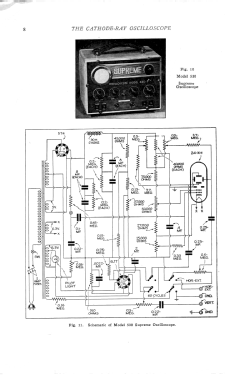

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Valves / Tubes
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 100-125 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Two Inch Oscilloscope 530 - Supreme Instruments Corp.;
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 9.5 x 8 x 6.75 inch / 241 x 203 x 171 mm
  • Notes
  • Oak case.
  • Price in first year of sale
  • 29.00 $
  • Literature/Schematics (1)
  • 1938 Radolek Catalog
  • Author
  • Model page created by Vitor Oliveira. See "Data change" for further contributors.
