• Country
• United States of America (USA)

• Manufacturer / Brand
• Supreme Instruments Corp.; Greenwood (MS)

• Year
• 1938

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 95733

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6J7 6J7 885 24XH 5T4

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 100-130 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Linear Sweep 2 Inch Oscilloscope 535 - Supreme Instruments Corp.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 12 x 9 x 7.3 inch / 305 x 229 x 185 mm

• Notes
• Oak case, bronze panel.

• Price in first year of sale
• 49.00 $

• Literature/Schematics (1)
• 1938 Radolek Catalog

• Literature/Schematics (2)

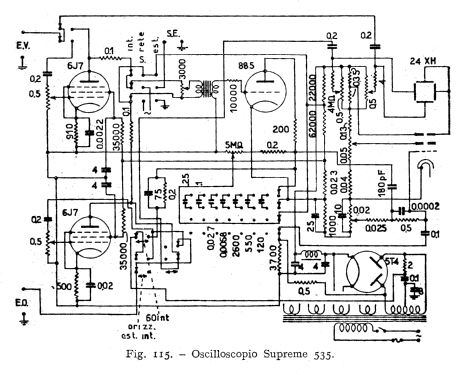

• Guida Pratica del Radioriparatore E. Costa 3a edizione 1943

• Author
• Model page created by Vitor Oliveira. See "Data change" for further contributors.
