• Year
  • 1931
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 62386

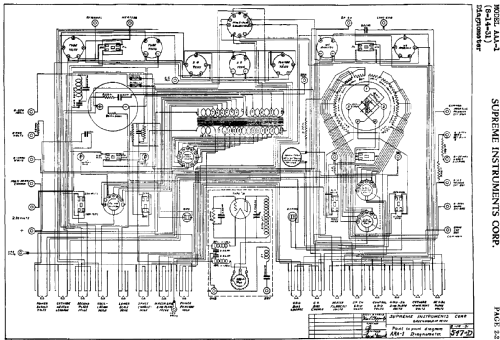

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • - - No sound reproduction output.
  • from Radiomuseum.org
  • Model: Diagnometer AAA-1 - Supreme Instruments Corp.;
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)
