• Country
• United States of America (USA)

• Manufacturer / Brand
• Supreme Instruments Corp.; Greenwood (MS)

• Year
• 1943/1944 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 293267

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 6C5 6C5 6SK7 6SK7 6F8G 6F8G 6SK7 6K6G 84

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Material
• Wooden case

• from Radiomuseum.org

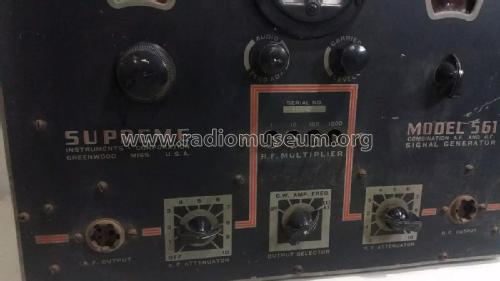

• Model: Signal Generator 561 - Supreme Instruments Corp.;

• Dimensions (WHD)
• 15 x 11 x 8 inch / 381 x 279 x 203 mm

• Notes

• Audio frequency range: from 15Hz to 15.000 kcs

  Radio frequency range: from 65khz to 20.5mc

• Net weight (2.2 lb = 1 kg)
• 38 lb 0 oz (38 lb) / 17.252 kg

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Meyer Rochwerger. See "Data change" for further contributors.
