• Year
  • 1934
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 207128

 Technical Specifications

  • Number of Tubes
  • 1
  • Valves / Tubes
  • 01A
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 98-125 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Tube Tester 85-P - Supreme Instruments Corp.;
  • Shape
  • Tablemodel, with any shape - general.
  • Notes

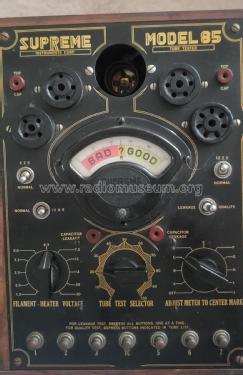

  • Portable 85P bakelite tube tester in wooden suitcase, 4 valve sockets, one 10 mA instrument, manual test voltage adjustment, 7 push-buttons, leakage & quality test, NE40 indicator lamp. There is also model 85 and model 85-PL.
  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.
