• Country
• Sweden

• Manufacturer / Brand
• Svenska Cykelfabriken, Varberg

• Year
• 1941–1943

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 129036

• • alternative name: Tobo Bruk, Tobo

• Number of Tubes
• 5

• Valves / Tubes
• ECH3 EF5 EBF2 CY1 CL6

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set

• Material
• Wooden case

• from Radiomuseum.org

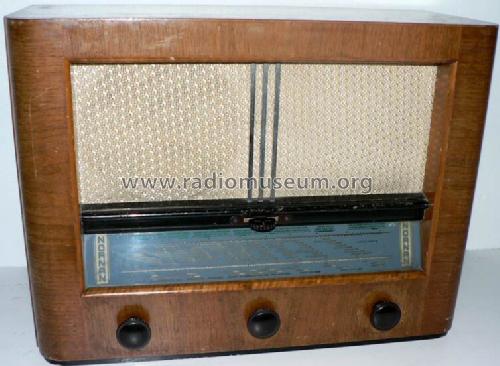

• Model: Nornan 320U - Svenska Cykelfabriken, Varberg

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 560 x 410 x 235 mm / 22 x 16.1 x 9.3 inch

• Notes
• The Nornan model 320U was also in brochure for 1942-43. Nornan 320 U was manufactured by Orion - Tungsram, Budapest, Hungary. However the glass dial branded Nornan and possibly other details may have been made and/or assembled in Sweden.

• Price in first year of sale
• 320.00 SEK

• External source of data
• From Nornan brochure of 1941-42

• Source of data
• -- Original prospect or advert
