• Country
• Sweden

• Manufacturer / Brand
• Nornan, Monark (Brand), Svenska Cykelfabriken; Varberg & Tobo

• Year
• 1949 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 129231

• Number of Tubes
• 7

• Valves / Tubes
• 6K7 6K8 6SQ7 6SK7 6UG5G 6V6 5Y4

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org

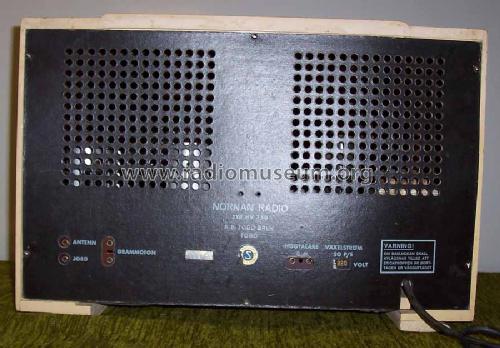

• Model: Nornan HV750 - Nornan, Monark Brand, Svenska

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 520 x 370 x 270 mm / 20.5 x 14.6 x 10.6 inch

• Price in first year of sale
• 357.00 SEK

• Source of data
• - - Data from my own collection
