33WLe

33WLe; Svenska Aktiebolaget (ID = 851434) Radio 33WLe; Svenska Aktiebolaget (ID = 851431) Radio
33WLe; Svenska Aktiebolaget (ID = 851432) Radio 33WLe; Svenska Aktiebolaget (ID = 851433) Radio
Use red slider bar for more.

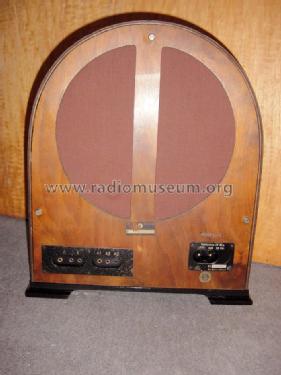

33WLe; Svenska Aktiebolaget (ID = 851434) Radio
Svenska Aktiebolaget: 33WLe [Radio] ID = 851434 700x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model 33WLe, Svenska Aktiebolaget Tradlös Telegrafi, Stockholm

Country:  Sweden
Manufacturer / Brand:  Svenska Aktiebolaget Tradlös Telegrafi, Stockholm
Year: 1930–1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: REN1004 REN1004 RES164d RGN354
Main principle TRF with regeneration; 2 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 105; 125; 150; 220 Volt
Loudspeaker Magnetic loudspeaker (reed) generic.
Power out
from Radiomuseum.org Model: 33WLe - Svenska Aktiebolaget Tradlös
Material Wooden case
Shape Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
Notes Chassis identisch mit Telefunken T33W, Gehäuse und Lautsprecher Eigenproduktion.
Collectors' prices
Source of data - - Data from my own collection

Model page created by Ralf Birkenkampf. See "Data change" for further contributors.



All listed radios etc. from Svenska Aktiebolaget Tradlös Telegrafi, Stockholm
Here you find 9 models, 9 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
