U5 (657GW)

U5 ; Svenska Aktiebolaget (ID = 614180) Radio U5 ; Svenska Aktiebolaget (ID = 614182) Radio

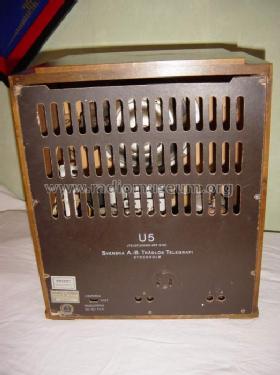

U5 ; Svenska Aktiebolaget (ID = 614181) Radio
Use red slider bar for more.
U5 ; Svenska Aktiebolaget (ID = 614180) Radio
Svenska Aktiebolaget: U5 [Radio] ID = 614180 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model U5 (657GW), Svenska Aktiebolaget Tradlös Telegrafi, Stockholm

Country:  Sweden
Manufacturer / Brand:  Svenska Aktiebolaget Tradlös Telegrafi, Stockholm
Year: 1934 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: CK1 CF2 CB1 CF1 CL2 CY2
Main principle Superheterodyne (common); ZF/IF 125 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 110-220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: U5 - Svenska Aktiebolaget Tradlös
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Notes = Telefunken Exportmodell f. Schweden 657GW.

Model page created by Ralf Birkenkampf. See "Data change" for further contributors.



All listed radios etc. from Svenska Aktiebolaget Tradlös Telegrafi, Stockholm
Here you find 9 models, 9 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
