Astro 150

Astro 150; Swan Electronics, (ID = 913736) Amat TRX

Astro 150; Swan Electronics, (ID = 934365) Amat TRX

Astro 150; Swan Electronics, (ID = 934366) Amat TRX

Astro 150; Swan Electronics, (ID = 934368) Amat TRX

Astro 150; Swan Electronics, (ID = 934369) Amat TRX

Astro 150; Swan Electronics, (ID = 934371) Amat TRX

Astro 150; Swan Electronics, (ID = 934372) Amat TRX

Astro 150; Swan Electronics, (ID = 934374) Amat TRX

Astro 150; Swan Electronics, (ID = 934376) Amat TRX

Astro 150; Swan Electronics, (ID = 934378) Amat TRX
Astro 150; Swan Electronics, (ID = 813155) Amat TRX Astro 150; Swan Electronics, (ID = 813157) Amat TRX
Astro 150; Swan Electronics, (ID = 813159) Amat TRX Astro 150; Swan Electronics, (ID = 813161) Amat TRX
Astro 150; Swan Electronics, (ID = 813162) Amat TRX
Use red slider bar for more.
Astro 150; Swan Electronics, (ID = 813155) Amat TRX

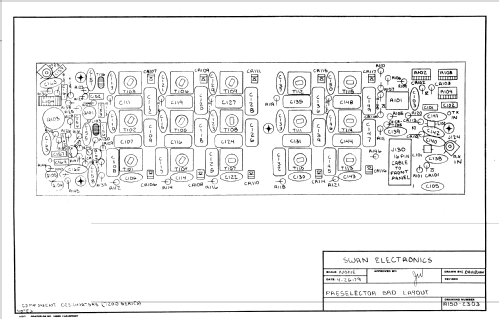

Swan Electronics,: Astro 150 [Amat TRX] ID = 813155 800x477
Select picture or schematic to display from thumbnails on the right and click for download.
For model Astro 150, Swan Electronics, Oceanside, CA

Country:  United States of America (USA)
Manufacturer / Brand:  Swan Electronics, Oceanside, CA
Year: 1979 Category: Amateur TRX: Transmitter/Receiver (and Transceiver)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common); ZF/IF 9016,5 kHz
Wave bands Short Wave (SW only)
Details
Power type and voltage Line / Storage batteries (perhaps also batteries) / 220 / 12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Astro 150 - Swan Electronics, Oceanside,
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 250 x 110 x 320 mm / 9.8 x 4.3 x 12.6 inch
Notes Digitally tuned (10-80 m) SSB transceiver with LED readout. Transmitter power output 100 W PEP into 50 Ohm non-reactive load at 13,8 VDC (power input 235 W). External power supply (PSU-5) for 220 VAC operation.
Net weight (2.2 lb = 1 kg) 6.1 kg / 13 lb 7 oz (13.436 lb)
Source of data - - Data from my own collection
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Jouko Laukkanen. See "Data change" for further contributors.



All listed radios etc. from Swan Electronics, Oceanside, CA
Here you find 33 models, 24 with images and 12 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
