SSB Transceiver 350A

Swan Electronics, Oceanside, CA

Data
Forum
Pictures
Collections

  • Year
  • 1977 ?
  • Category
  • Amateur TRX: Transmitter/Receiver (and Transceiver)
  • Radiomuseum.org ID
  • 343945

 Technical Specifications

  • Number of Tubes
  • 11
  • Number of Transistors
  • 5
  • Main principle
  • Transceiver
  • Wave bands
  • Short Wave (SW only)
  • Power type and voltage
  • Alternating Current supply (AC) / 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: SSB Transceiver 350A - Swan Electronics, Oceanside,
  • Shape
  • Tablemodel, with any shape - general.
  • Notes

  • Transceiver working in 80 through 10 meters, on SSB and CW modes.

    • 300 watts PEP SSB
    • 200 watts DC input on CW
    • Modes: USB, LSB, CW
    • 5.5 MHz, 2.7 kHz bandwidth crystal filter
    • CW sidetone monitor
    • Adjustable pitch and volume
    • CW audio filter 80 & 100 Hz selectable
    • Built-in Speaker
    • 5-digit frequency indication on numerical scale.

    350D model has the same characteristics except for 6 digit frequency display with a readout to 100 Hz.

    All semiconductors are listed.  There are twelve 1N4005 diodes and six 1N914 diodes.

    Price in Italy (1978) 650,000 ITL.

    See also SSB Transceiver 350.

  • Mentioned in

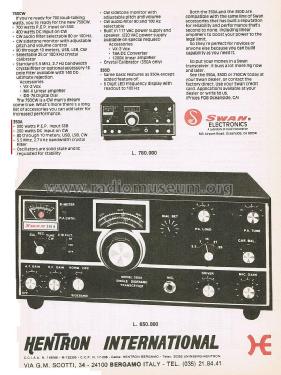

  • -- Original prospect or advert (“Radio Rivista” official organ of "ARI Amat. Radio Assoc." of Italy, number 11, November 1978.)
  • Literature/Schematics (1)
  • -- Original-techn. papers. (Original "Installation, Operation and Maintenance" manual)
  • Author
  • Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
