Inconnu - Unknown 2
Radio Sylviane; Lille
- Country
- France
- Manufacturer / Brand
- Radio Sylviane; Lille
- Year
- 1950 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 272848
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 15 cm = 5.9 inch
- Material
- Wooden case
- from Radiomuseum.org

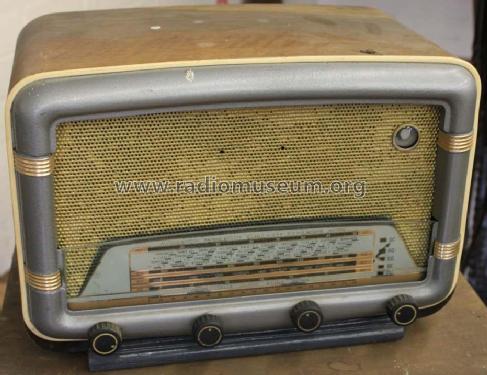

- Model: Inconnu - Unknown 2 - Radio Sylviane; Lille
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 382 x 265 x 222 mm / 15 x 10.4 x 8.7 inch
- Notes
-
Radio à 4 bandes: OL, OM, OC (16-50 m) et BE (bande étalée, 46-51 m).
- Author
- Model page created by Dirk Bladt. See "Data change" for further contributors.
