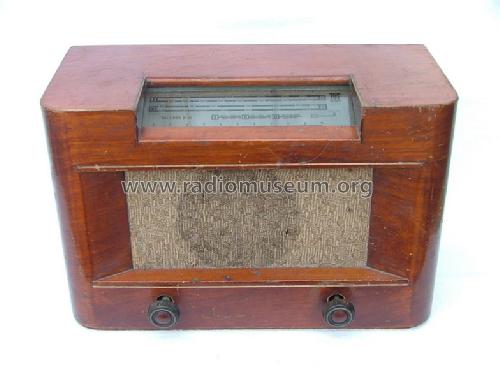

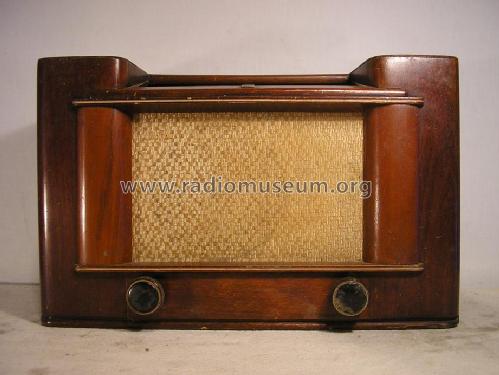

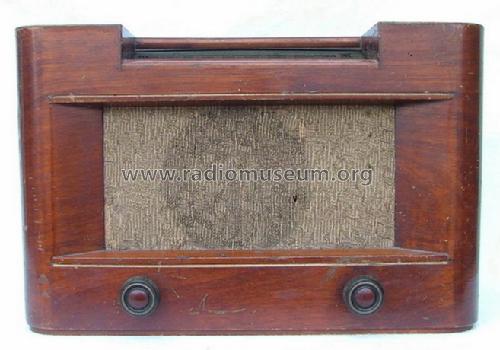

Tallinn P-2 (B-2)

• Country
• Estonia (Eesti, Tallinn)

• Manufacturer / Brand
• Tallinn Punane RET Radio Works

• Year
• 1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 88732

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1А1П 1К1П 1Б1П 2П1П

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries / 1,2-2 & 60-90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Tallinn P-2 - Tallinn Punane RET Radio Works

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 420 x 275 x 200 mm / 16.5 x 10.8 x 7.9 inch

• Notes
• Normal/economic mode switch.

• Net weight (2.2 lb = 1 kg)
• 7 kg / 15 lb 6.7 oz (15.419 lb)

• Mentioned in
• E.A.Levitin "Radio sets" Moscow 1960

• Author
• Model page created by Zenonas Langaitis. See "Data change" for further contributors.
