Vol'tmetr Universalyj - Вольтметр Универсалый V7-26 - В7-26

Vol'tmetr Universalyj - Вольтметр Универсалый V7-26 - В7-26; Tallinn Punane RET (ID = 1326156) Equipment
Vol'tmetr Universalyj - Вольтметр Универсалый V7-26 - В7-26; Tallinn Punane RET (ID = 1325018) Equipment Vol'tmetr Universalyj - Вольтметр Универсалый V7-26 - В7-26; Tallinn Punane RET (ID = 1325019) Equipment
Vol'tmetr Universalyj - Вольтметр Универсалый V7-26 - В7-26; Tallinn Punane RET (ID = 1325020) Equipment
Use red slider bar for more.
Vol'tmetr Universalyj - Вольтметр Универсалый V7-26 - В7-26; Tallinn Punane RET (ID = 1325018) Equipment

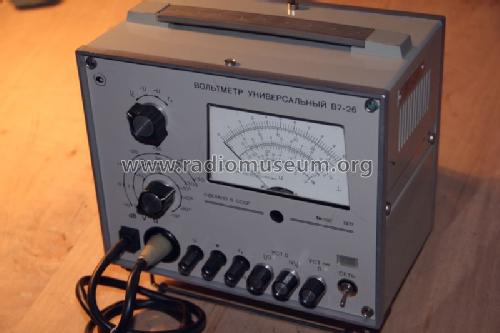

Tallinn Punane RET: Vol'tmetr Universalyj - Вольтметр Универсалый V7-26 - В7-26 [Equipment] ID = 1325018 800x533
Select picture or schematic to display from thumbnails on the right and click for download.
For model Vol'tmetr Universalyj - Вольтметр Универсалый V7-26 - В7-26, Tallinn Punane RET Radio Works

Country:  Estonia (Eesti, Tallinn)
Manufacturer / Brand:  Tallinn Punane RET Radio Works
Year: 1977 Category: Service- or Lab Equipment
Valves / Tubes 1: 6Д24Н
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Vol'tmetr Universalyj - Вольтметр Универсалый V7-26 - В7-26 - Tallinn Punane RET Radio Works
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 225 x 205 x 160 mm / 8.9 x 8.1 x 6.3 inch
Notes

Messbereiche:

Gleichspannung:  0.1V, 0.3V, 1V, 3V, 10V, 30V, 100V, 300V
  Mit Spannungsteiler dn-518 (ДН-518) Messung bis 1000V möglich.

Wechselspannung:  1V, 3V, 10V, 30V, 100V, 300V   (20Hz -20kHz)
  Mit Spannungsteiler dn-518 (ДН-518) Messung bis 1000V möglich (20Hz - 3kHz)

Wechselspannung über HF-Eingang:  1V, 3V, 10V, 30V, 100V  (1kHz - 1GHz)
  Mit Spannungsteiler dn-519 (ДН-519) Messung bis 1000V möglich (3kHz - 300MHz)

Widerstand:  100Ohm, 1kOhm, 10kOhm, 100kOhm, 1MOhm, 10MOhm, 100MOhm.



Net weight (2.2 lb = 1 kg) 3.3 kg / 7 lb 4.3 oz (7.269 lb)
Source of data - - Manufacturers Literature

Model page created by Chris Lepiarczyk. See "Data change" for further contributors.
