Portable TP3-1
Use red slider bar for more.

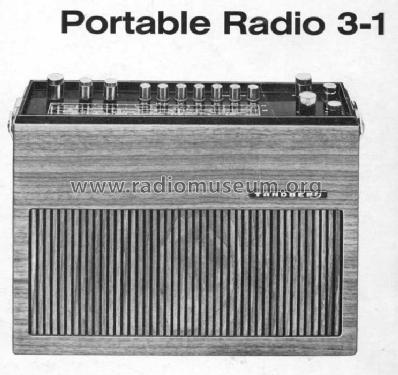

Tandberg Radio; Oslo: Portable TP3-1 [Radio] ID = 56624 744x700
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1966–1968 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 14: BF115 BF115 BC134 BF115 BF115 BF115 BF115 BC108 BC109 BC108 AC127 AC128 AC153 AC153 BA124 AA119 AA119 AA119 AA119 1S920 |
|---|
| Main principle | Superheterodyne (common) |
|---|---|
| Tuned circuits | 7 AM circuit(s) 13 FM circuit(s) |
| Wave bands | Broadcast, Long Wave, Short Wave plus FM or UHF. |
| Details | |
| Power type and voltage | Dry Batteries / 9 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical |
| Power out | |
| from Radiomuseum.org | Model: Portable TP3-1 - Tandberg Radio; Oslo |
| Material | Wooden case |
| Shape | Portable set > 8 inch (also usable without mains) |
| Dimensions (WHD) | 280 x 190 x 80 mm / 11 x 7.5 x 3.1 inch |
| Notes | AFC, SW fine tuning. |
| Price in first year of sale | 720.00 NKr. |
| Literature/Schematics (1) | -- Original-techn. papers. |
Model page created by Ernst Rykkje. See "Data change" for further contributors.
