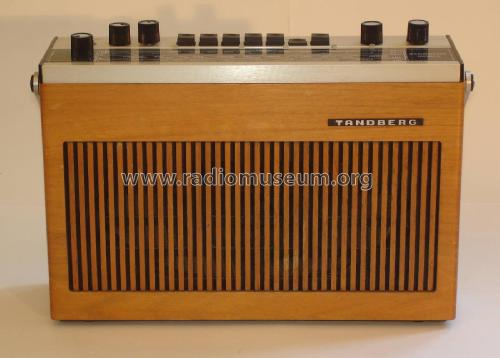

Tandberg Radio; Oslo: Portable TP43 [Radio] ID = 101596 655x573
Select picture or schematic to display from thumbnails on the right and click for download.
For model Portable TP43 IC-output stage, Tandberg Radio; Oslo

Country:  Norway
Manufacturer / Brand:  Tandberg Radio; Oslo
Year: 1975 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: BF200 BF195 BF195 BF194 BC148 BF195 BF195 BF195 BC148 BC149 TBA810 BA124 AA119 AA119 AA119 1N4148 1N4148 AA119 B60C800
Main principle Superhet with RF-stage; ZF/IF 455/10700 kHz
Tuned circuits 8 AM circuit(s)     13 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line plus power jack, mostly with battery or storage battery / 220 / DC 12 / D: 6 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Portable TP43 [IC-output stage] - Tandberg Radio; Oslo
Material Wooden case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 270 x 180 x 80 mm / 10.6 x 7.1 x 3.1 inch
Notes

Tandberg Portable TP43 with IC output stage TBA810.
See also Portable TP43 with transistorized output stage AC187/AC188.

Price in first year of sale 1'295.00 NKr.
Literature/Schematics (1) -- Original-techn. papers.
