Sølvsuper 5 de Luxe var2

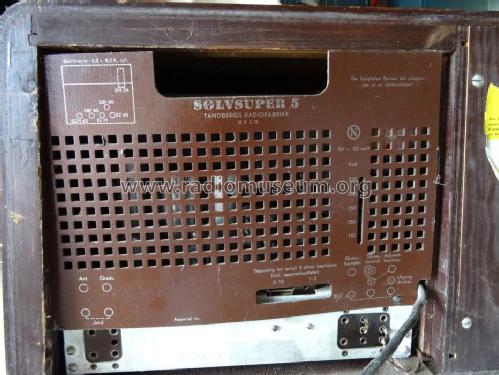

Sølvsuper 5 de Luxe; Tandberg Radio; Oslo (ID = 2364281) Radio Sølvsuper 5 de Luxe; Tandberg Radio; Oslo (ID = 2364282) Radio
Sølvsuper 5 de Luxe; Tandberg Radio; Oslo (ID = 2364283) Radio
Use red slider bar for more.
Sølvsuper 5 de Luxe; Tandberg Radio; Oslo (ID = 2364281) Radio
Tandberg Radio; Oslo: Sølvsuper 5 de Luxe [Radio] ID = 2364281 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sølvsuper 5 de Luxe var2, Tandberg Radio; Oslo

Country:  Norway
Manufacturer / Brand:  Tandberg Radio; Oslo
Year: 1951–1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH42 EBF80 EBF80 EL41 EM34 EZ40
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-230 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
Power out
from Radiomuseum.org Model: Sølvsuper 5 de Luxe [var2] - Tandberg Radio; Oslo
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 650 x 290 x 240 mm / 25.6 x 11.4 x 9.4 inch
Price in first year of sale 640.00 NKr

Model page created by Ernst Rykkje. See "Data change" for further contributors.



All listed radios etc. from Tandberg Radio; Oslo
Here you find 201 models, 171 with images and 106 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
