• Year
  • 1961 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 152072

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • - without
  • Details
  • Tape Recorder
  • Power type and voltage
  • Alternating Current supply (AC) / 200-250 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • from Radiomuseum.org
  • Model: Sound Studio A26 - Tape Recorders Electronics Ltd
  • Notes
  • Tape recorder fitted with a Collaro "Studio" deck. Three speed 7.5, 3.75, & 1.875 ips, dual track. Same chassis as model A25.
  • Source of data

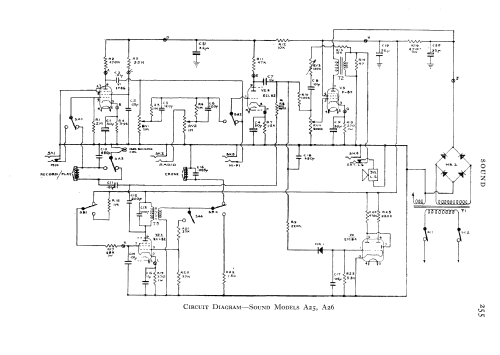

  • -- Schematic
  • Circuit diagram reference

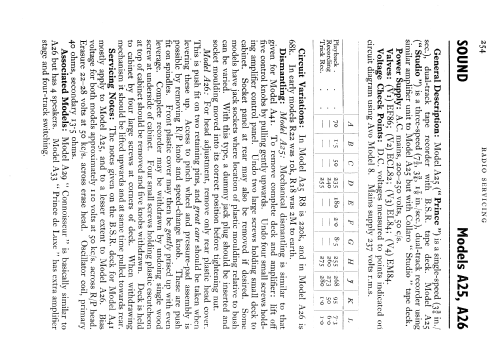

  • Radio and TV Servicing books (R&TVS) book
  • Author
  • Model page created by Keith Staines. See "Data change" for further contributors.
