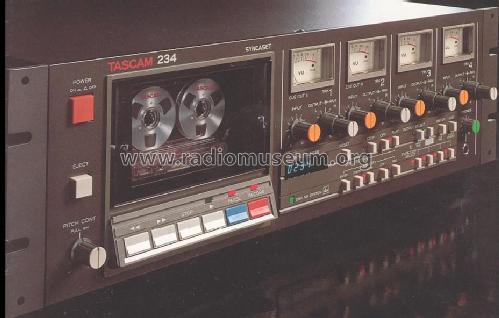

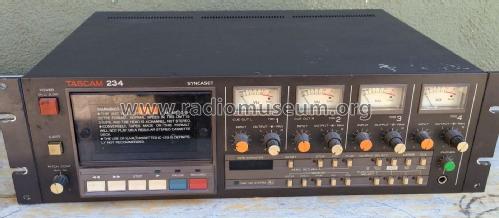

Tascam Syncaset 234 L

TEAC; Tokyo

  • Year
  • 1990
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 236450
    • Brand: Tascam

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player; Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 120 or 220 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Tascam Syncaset 234 L - TEAC; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 482 x 147 x 357 mm / 19 x 5.8 x 14.1 inch
  • Notes
  • Tape: Compact Cassette, C-30 to C-90, chrome (cobalt) tape
             (70µs EQ) such as TDK SA, MAXELL XL or equivalent
    Track Format: 4-track, 4 channel one direction recording/playback
    Heads: 4 channel record/playback Permalloy
                4 channel erase (Ferrite)
    Motors: 1 FG servo-controlled DC capstan motor, 1 DC reel motor, 1 DC control motor
    Tape speed: 9.5cm/s (3-3/4IPS) ± 1%
    Pitch Control: ± 12% of normal tape speed
    Wow & Flutter: ± 0.06% peak (DIN/IEC/ANSI weighted), 0.04% RMS (JIS/NAB, weighted)
    Total Harmonic Dist.: 0.05% (1kHz, 0VU)
    Crosstalk: 65dB (1kHz)
    Recording section:
      Record channels: 4 (4 dbxIINR, switchable)
      Playback channels: 4 (4 dbxIINR, switchable)
      Bias and erasing freq.: 100kHz
      Signal-to-Noise Ratio: 54dB (dbx OUT, IHF, A weighted 400Hz)
      Total harmonic Distortion: 1.0% (400Hz, 0VU)
      Crosstalk: 70dB (1kHz, 0VU, dbx IN) 50dB (1kHz, 0VU, dbx OUT)
      Erasure: 70dB referenced to 285nWb/m at 1kHz

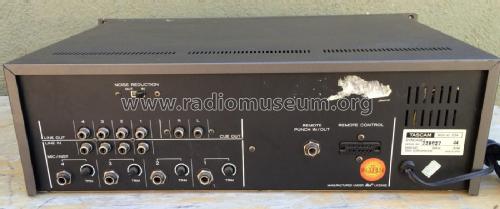

    4-Spur Kassettenrecorder mit 4 VU-Metern, Bandgeschwindigkeit 9,5 cm/s mit Pitchcontrol ± 12%, 3 Motoren, je ein 4-Spur Aunahme/Wiedergabe- und ein Löschkopf, Noisereduction dbx II , Anschlüsse 4 x Line in + 4 x Line out, 2 x Cue out,  RCA Stecker, 4 x Line in für Micro, 2 x Remote Contol, 1 x Kopfhörer.

  • Net weight (2.2 lb = 1 kg)
  • 9.8 kg / 21 lb 9.4 oz (21.586 lb)
  • Mentioned in
  • -- Original-techn. papers.
  • Author
  • Model page created by Felix Kreitlow. See "Data change" for further contributors.
