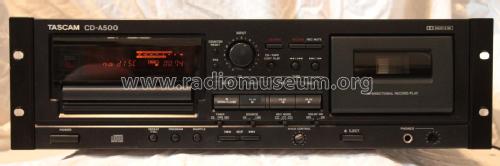

Tascam Compact Disc Player/Reverse Cassette Deck CD-A500

Tascam Compact Disc Player/Reverse Cassette Deck CD-A500; TEAC; Tokyo (ID = 2016510) R-Player Tascam Compact Disc Player/Reverse Cassette Deck CD-A500; TEAC; Tokyo (ID = 2016507) R-Player
Tascam Compact Disc Player/Reverse Cassette Deck CD-A500; TEAC; Tokyo (ID = 2016508) R-Player Tascam Compact Disc Player/Reverse Cassette Deck CD-A500; TEAC; Tokyo (ID = 2016509) R-Player
Tascam Compact Disc Player/Reverse Cassette Deck CD-A500; TEAC; Tokyo (ID = 2016512) R-Player Tascam Compact Disc Player/Reverse Cassette Deck CD-A500; TEAC; Tokyo (ID = 2016513) R-Player
Tascam Compact Disc Player/Reverse Cassette Deck CD-A500; TEAC; Tokyo (ID = 2016514) R-Player Tascam Compact Disc Player/Reverse Cassette Deck CD-A500; TEAC; Tokyo (ID = 1925980) R-Player
Tascam Compact Disc Player/Reverse Cassette Deck CD-A500; TEAC; Tokyo (ID = 1925981) R-Player
Use red slider bar for more.
Tascam Compact Disc Player/Reverse Cassette Deck CD-A500; TEAC; Tokyo (ID = 2016510) R-Player
TEAC; Tokyo: Tascam Compact Disc Player/Reverse Cassette Deck CD-A500 [R-Player] ID = 2016510 1399x754
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tascam Compact Disc Player/Reverse Cassette Deck CD-A500, TEAC; Tokyo

Country:  Japan
Manufacturer / Brand:  TEAC; Tokyo
Brand

Tascam
Year: 1998 ? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Other Combination - see Notes
Power type and voltage Alternating Current supply (AC) / 120/230 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Tascam Compact Disc Player/Reverse Cassette Deck CD-A500 - TEAC; Tokyo
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 483 x 133 x 270 mm / 19 x 5.2 x 10.6 inch
Notes

Professionelle CD-Player/Autoreverse Cassettendeck Kombination auch für 3U Rack (19") Montage mit Fernbedienung RC-A500

Geschwindigkeit Tape 4,76 cm/sec pitchbar +/- 12%, Dolby B, wechselseitige Abspielfunktion zwischen Cassette + Disc. Für Aufnahmen von CD ist die Aufnahmezuordnung der einzelnen Tracks auf Seite A oder B der Cassette möglich.

Anschlüsse hinten Chinch in/out und Aux out, Front Kopfhöhreranschluss klinke.

CD player section
(Audio)
Number of channels: 2
Frequency response: 10 - 20,000 Hz ± 0.5 dB
Signal-to-noise ratio: 90 dB
Dynamic range: 90 dB
Total harmonic distortion: 0.02% (1 kHz)
Wow and flutter:
Unmeasurable (quartz accuracy)
Channel separation: 75 dB
Output: 2 Vrms
Digital filter: 4-times oversampling
Analog filter: 3rd order
(Signal format)
Sampling frequency: 44.1 kHz
D/A converter: 16-bit linear/channel
Channel bit rate: 4.3218 Mb/sec.
Channel modulation code: EFM
Error correction: CIRC
(Pickup)
Type: Objective lens drive, optical 3-beam
laser pickup.
Objective Lens:
2-dimensional parallel drive
Laser Type:
GaAIAs type semiconductor laser
Wave length: 780 nm

Cassette section
Track system: 4-track 2-channel stereo
Heads: Record/playback x 1 (rotary
reverse), erase x 1
Type of tape: Cassette tape C-60, C-90
Tape speed: 4.76 cm/sec.
Motor: DC servo motor x 1
Wow and flutter: 0.08% (W. RMS)
Frequency response (overall):
50 – 15,000 Hz ± 3 dB, metal
50 – 15,000 Hz ± 3 dB, chrome
50 – 14,000 Hz ± 3 dB, normal

Signal-to-noise ratio (overall):
59dB(DOLBYNRoff,3%THD level, weighted),
69 dB (DOLBY NR on, over 5 kHz)
Fast winding time: Approx. 120 sec. (with C-
60)
Input: Line; 87 mV (input impedance of 50
kohms or more)
Output: Line; 0.46 V (load impedance of 50
kohms or more)
Headphones; 1 mV/8 ohms



Net weight (2.2 lb = 1 kg) 6.4 kg / 14 lb 1.6 oz (14.097 lb)
Price in first year of sale 469.00 $
Mentioned in -- Original-techn. papers.

Model page created by Felix Kreitlow. See "Data change" for further contributors.
